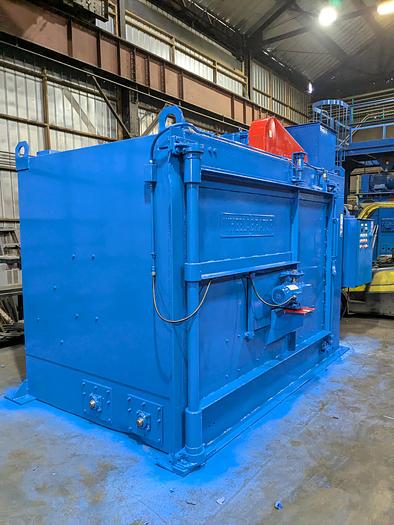

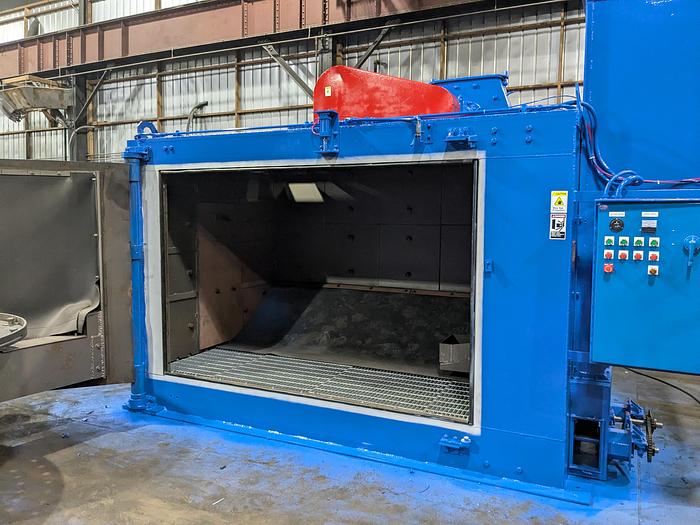

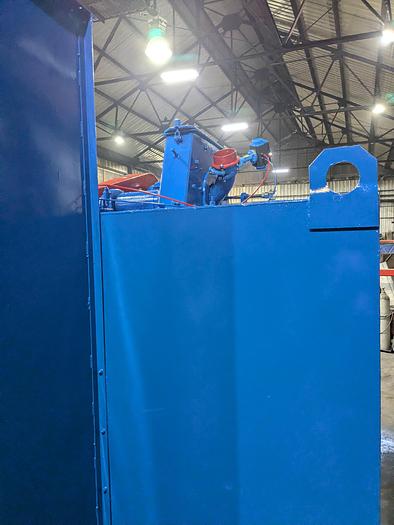

Wheelabrator 72" Swing Table

This is a fully rebuilt 72" swing table machine, complete with all standard features of the Wheelabrator table. It has a powerful 20 HP belt driven wheel, updated electrics, and large work opening. Below is the repair list:

Wheelabrator 72 Swing Table Repair List

● Cabinet

○ Replaced entire left wall and liner system

○ Repaired auger troughs

○ Repaired boot section wall and plenum shield

○ Repaired wheel opening and liner

○ Repaired boot section

○ Repaired elevator and plenum

○ Repaired auger shaft

○ Replaced bearings and sprockets for augers

○ Repaired rear leg (rusted through from water damage)

○ Replaced door seals

○ Replaced rear rubber liner

○ Replaced grating

○ Cleaned and Painted

● Table

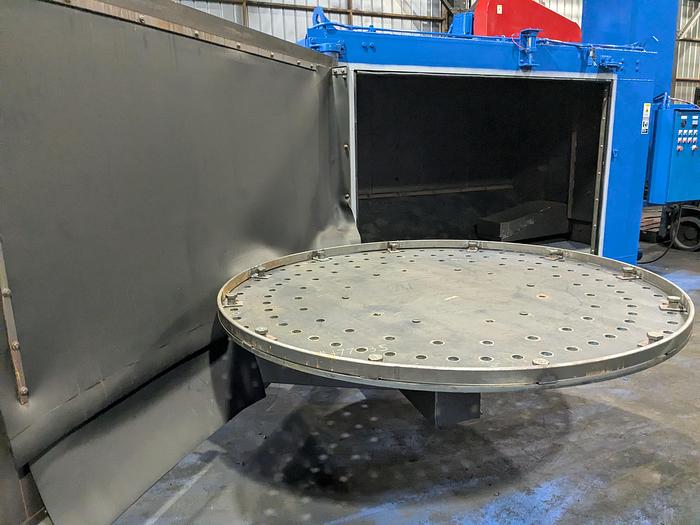

○ Replaced table with AR 500 table

○ Replaced drive belt

○ Repaired table drive pulley

○ Replaced table drive shaft, bearings, gear reducer

○ Replaced gear motor

○ Cleaned and Painted

● Wheel

○ Repaired base plate

○ Replaced tune up kit

○ Replaced rear bearing unit seal

○ New wafer style abrasive valve

○ Replaced Wheel motor

○ Cleaned and Painted

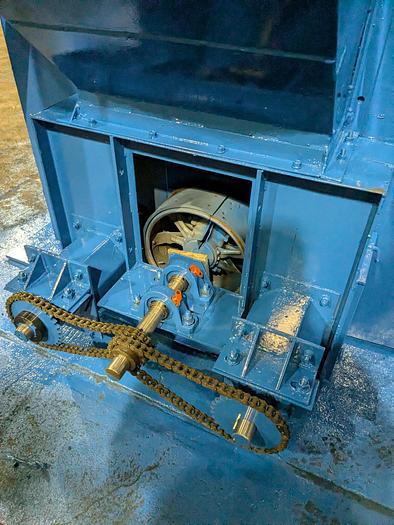

● Separator

○ Repaired numerous holes in head section

○ Repaired storage hopper

○ Replaced magnets in slide gate

○ Replaced head section shaft, bearings, and gear drive

○ New gear drive motor

○ Cleaned and Painted

● Electrics

○ Replaced all motors

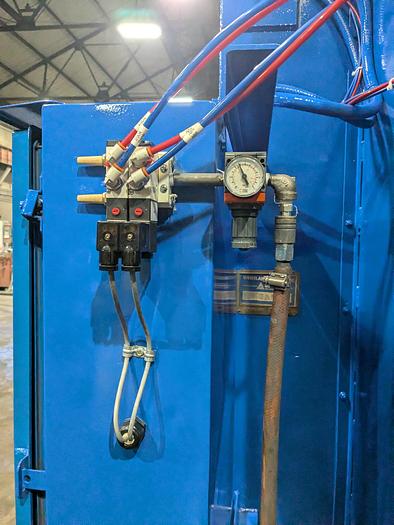

○ Replaced abrasive and door solenoids

○ Replaced all machine wiring

○ Replaced all push buttons, meters, and gauges

○ Replaced door limit switch

All components were gone over and determined to be in good operating condition or

replaced.
